Introduction ============

This document describes in depth how to prepare your Iomega StorCenter G2 for installing NetBSD/sandpoint. The three supported models are:

  • StorCenter G2 Single Drive, 200MHz
  • StorCenter G2 Dual Drive, 200MHz
  • StorCenter G2 Quad Drive, 266MHz

All models have 64 MB RAM and a PATA disk interface. Note that newer StorCenter models use an ARM CPU and are not supported.

To install NetBSD/sandpoint you will have to open the case for getting access to the serial console. This is shown here for the Single Drive model.

StorCenter Single Drive
Accessing the serial interface ============================== We need a serial console to get access to the firmware. That includes soldering a cable to the board and building (or buying) a serial adapter to convert from the StorCenter's TTL levels to RS232 levels. Disassemble the StorCenter Single Drive ---------------------------------------
StorCenter disassembly step 1

The Single Drive model is somewhat tricky to open. Move the cover by applying some force into the direction away from the interface bezel. It will eventually snap open. Then remove the metal shielding. Again, there are no screws. It is held in place by some brackets. Just pull it upwards and you will see the hard disk.

StorCenter disassembly step 2
StorCenter disassembly step 3

Do not try to access the screws, which are securing the disk drive, through the plastic vents. To be able to pull the metal case up we have to remove four screws at the bottom first, which are hidden behind a plastic plate. Pry open the plastic plate using a levering tool, like a screw driver. You will need some force to do that.

StorCenter disassembly step 4

Remove the four screws at the bottom. Now you can easily pull the metal case out.

StorCenter disassembly step 5
StorCenter disassembly step 6

Remove the four screws which are securing the hard disk and unplug its connectors. Also remove the fan and the LED from the metal case. Now you can pull the mainboard out of the metal case, by moving it into the direction of the rear bezel.

Locate the serial header ------------------------ Look out for an unpopulated 8-pin header, called `J11` (marked red on the picture to the left). The leftmost four pins can be used for the serial interface. The pin assignments are shown in the table.
StorCenter mainboard
Pin number Function
1 3.3V
2 TXD
3 GND
4 RXD
Header pin assignments
Attaching a serial cable ------------------------

It is not recommended to solder a header onto J11, because then you would no longer be able to close the case. Instead you should just solder a 4-wire ribbon cable, which is flat enough to hide under the disk drive. Also make sure to choose a small 4-pin plug, which you can connect to your external cable with the actual D-SUB 9 connector. Alternatively you can cut a hole into the case.

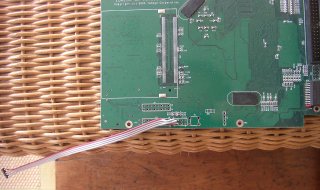

StorCenter serial cable attached
Serial connection ----------------- The serial port on the StorCenter is using 3.3V TTL levels, which have to be converted into regular RS232 levels by a level shifter circuit. If you are not anxious using a soldering iron you find detailed instructions how to build such a converter here: - [Serial adapter for 3.3V TTL](http://www.NetBSD.org/ports/sandpoint/ttl2rs232.html) Make sure that the layout of the plug fits to the pinout of the StorCenter's serial header, as shown above. Another option is to buy such a converter. There are solutions for a standard RS232 interface and for an USB interface. Look out for: - RS232 level shifter / breakout board (MAX3232 based) - USB to TLL serial level shifter / breakout board (FT232 based) First installation ================== Accessing the Firmware ---------------------- Provided the serial converter is installed and working correctly you should be able to connect to the firmware's serial console. Iomega is using [U-Boot](http://www.denx.de/wiki/U-Boot/), the Universal Boot Loader. Now you can connect with any terminal program to the StorCenter's serial console. The easiest approach may be to use NetBSD's `tip(1)` command to make a direct console connection at 115200bps. # tip -115200 console Note that when using a serial connection via USB you may have to make an entry for `/dev/ttyU0` in `/etc/remote`. Immediately after switching your StorCenter on it will display the following information (output is from a Single Drive model) and gives you one second to stop autobooting. U-Boot 1.0.0 (Sep 2 2005 - 14:49:11) CPU: MPC8241 Revision 1.4 at 199.999 MHz: 16 kB I-Cache 16 kB D-Cache Board: StorCenter PICR1 is now 00141b98 PICR2 is now 00040605 AMBOR is now c1 DRAM: 64 MB FLASH: 8 MB In: serial Out: serial Err: serial Net: PCI device RTL8169#0: unknown chip version, assuming RTL-8169 PCI device: TxConfig = 0x0 RTL8169#0 Hit any key to stop autoboot: 0 altboot ------- The `altboot(8)` utility functions as a bridge between the Iomega firmware and the NetBSD kernel startup environment. NAS firmware often provides no means to boot a kernel from disk or from the network and doesn't initialize all hardware correctly. We will also use it to pass a bootinfo list to the kernel. The `altboot` boot loader has to be loaded and started using U-Boot. Usually there are three ways to invoke it: - **loadb** to load a binary file via serial line in kermit mode - **tftpboot** to load a binary file over the network with TFTP protocol - start it from the flash memory The last option is prefered once the installation is completed, but obviously it is not possible for the first time boot. Fortunately U-Boot has set up the network interface, which we can use after configuring the `ipaddr` and `serverip` environment variables:
IOMEGA=> setenv ipaddr 192.168.0.105
IOMEGA=> setenv serverip 192.168.0.5
IOMEGA=> saveenv
Saving Environment to Flash...
Un-Protected 1 sectors
Erasing Flash...
. done
Erased 1 sectors
Writing to Flash... done
Protected 1 sectors
Once you have set up TFTP and DHCP ([read below](#altboot_install)) you can download `altboot` like this:
IOMEGA=> tftp 1000000 altboot.bin
TFTP from server 192.168.0.5; our IP address is 192.168.0.105
Filename 'altboot.bin'.
Load address: 0x1000000
Loading: ###############
done
Bytes transferred = 74732 (123ec hex)
Boot the INSTALL kernel with altboot ------------------------------------ Now you can use `altboot` to launch the `netbsd-INSTALL` kernel for installing NetBSD. You may choose to load it with TFTP or from NFS. For TFTP you have to enable `tftpd(8)` in `/etc/inetd.conf`, and for NFS there is a documentation at [The Network File System](http://www.NetBSD.org/docs/guide/en/chap-net-services.html#chap-net-services-nfs). But in both cases you have to set up a DHCP server, which is explained in the [DHCP Howto](http://www.NetBSD.org/docs/network/dhcp.html). An appropriate `dhcpd.conf` entry could look like this: host storcenter { hardware ethernet 00:d0:b8:xx:xx:xx; fixed-address 192.168.0.105; next-server 192.168.0.5; option root-path "/export/storcenter/root"; } The `root-path` option is only needed when using NFS and should match your exported NFS directory. Uncompress `netbsd-INSTALL.gz` from the NetBSD/sandpoint distribution and copy it into the NFS or TFTP directory. Then start the DHCP, NFS or TFTP server and boot the installation kernel from the firmware either with
IOMEGA=> go 1000000 tftp:netbsd-INSTALL
or from NFS:
IOMEGA=> go 1000000 nfs:netbsd-INSTALL
Our bootloader configures the hardware, determines the IP address, loads the kernel via network and launches it: ## Starting application at 0x01000000 ... >> NetBSD/sandpoint altboot, revision 1.8 (Wed Nov 23 21:51:40 CET 2011) >> IOMEGA StorCenter G2, cpu 200 MHz, bus 100 MHz, 64MB SDRAM channel 0 present wd0: DMA LBA LBA48 286168 MB wd0: no disklabel MAC address 00:d0:b8:xx:xx:xx 100Mbps-FDX Hit any key to enter interactive mode: 0 loading "netbsd-INSTALL" 5222228+112540=0x516b78 entry=0x90000, ssym=0x5a66f0, esym=0x5a6b78 Copyright (c) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 The NetBSD Foundation, Inc. All rights reserved. Copyright (c) 1982, 1986, 1989, 1991, 1993 The Regents of the University of California. All rights reserved. NetBSD 5.99.59 (INSTALL) #10: Fri Dec 30 18:53:09 CET 2011 frank@compaq.owl.de:/home/frank/netbsd/current/src/sys/arch/sandpoint/compile/obj/INSTALL Model: iomega total memory = 65536 KB avail memory = 57904 KB OpenPIC Version 1.2: Supports 1 CPUs and 26 interrupt sources. mainbus0 (root) cpu0 at mainbus0: 8245 (Revision 0.4), ID 0 (primary) cpu0: HID0 0x90c000, powersave: 1 eumb0 at mainbus0 com0 at eumb0 unit 0: ns16550a, working fifo com0: console com0: interrupting at irq 40 ociic0 at eumb0 iic0 at ociic0: I2C bus dsrtc0 at iic0 addr 0x68: DS1307 Real-time Clock/NVRAM satmgr0 at eumb0 unit 1: button manager (iomega) satmgr0: interrupting at irq 41 pci0 at mainbus0 bus 0 pchb0 at pci0 dev 0 function 0 pchb0: vendor 0x1057 product 0x0006 (rev. 0x14) viaide0 at pci0 dev 13 function 0 viaide0: VIA Technologies VT6410 IDE controller viaide0: using irq 17 for native-PCI interrupt atabus0 at viaide0 channel 0 atabus1 at viaide0 channel 1 ohci0 at pci0 dev 14 function 0: vendor 0x1033 product 0x0035 (rev. 0x43) ohci0: interrupting at irq 18 ohci0: OHCI version 1.0 usb0 at ohci0: USB revision 1.0 ohci1 at pci0 dev 14 function 1: vendor 0x1033 product 0x0035 (rev. 0x43) ohci1: interrupting at irq 19 ohci1: OHCI version 1.0 usb1 at ohci1: USB revision 1.0 ehci0 at pci0 dev 14 function 2: vendor 0x1033 product 0x00e0 (rev. 0x04) ehci0: interrupting at irq 20 ehci0: companion controllers, 3 ports each: ohci0 ohci1 usb2 at ehci0: USB revision 2.0 re0 at pci0 dev 15 function 0: RealTek 8169/8110 Gigabit Ethernet (rev. 0x10) re0: interrupting at irq 16 re0: Ethernet address 00:d0:b8:xx:xx:xx rgephy0 at re0 phy 7: RTL8169S/8110S/8211 1000BASE-T media interface, rev. 3 rgephy0: 10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-FDX, auto biomask 1f000000 netmask 1f000000 ttymask 1f000000 uhub0 at usb0: vendor 0x1033 OHCI root hub, class 9/0, rev 1.00/1.00, addr 1 uhub1 at usb1: vendor 0x1033 OHCI root hub, class 9/0, rev 1.00/1.00, addr 1 uhub2 at usb2: vendor 0x1033 EHCI root hub, class 9/0, rev 2.00/1.00, addr 1 wd0 at atabus0 drive 0 wd0: wd0: 279 GB, 581421 cyl, 16 head, 63 sec, 512 bytes/sect x 586072368 sectors boot device: re0 root on md0a dumps on md0b root file system type: ffs WARNING: preposterous TOD clock time WARNING: using filesystem time WARNING: CHECK AND RESET THE DATE! erase ^H, werase ^W, kill ^U, intr ^C, status ^T Terminal type? [vt100] Just follow the usual procedure to install a NetBSD system. Sandpoint installation window Post installation steps ======================= After a successful installation you want to make the system boot standalone when switched on, without the need for a serial console. So you have to modify the `bootcmd` in U-Boot's environment and write the `altboot.bin` binary to the Flash ROM. To find a suitable place in the Flash ROM you can use the **flinfo** command and look out for empty sectors `(E)`. On my StorCenter I have chosen `0xffe80000`. Replace that in all the following commands if you have chosen a different address. Load `altboot.bin` into memory at `0x1000000` again, as explained above. Then execute the following commands to write it to Flash ROM:
IOMEGA=> protect off ffe80000 ffe9ffff
Un-Protected 2 sectors
IOMEGA=> erase ffe80000 ffe9ffff

. done
Erased 2 sectors
IOMEGA=> cp.b 1000000 ffe80000 18000
Copy to Flash... done
IOMEGA=> protect on ffe80000 ffe9ffff
Protected 2 sectors
Finally adapt the `bootcmd` environment string to autoboot `altboot` and start the `netbsd` kernel (which is the default name) from `wd0` on each reboot:
IOMEGA=> setenv bootcmd cp.b ffe80000 1000000 18000\; go 1000000 wd0:
IOMEGA=> saveenv
Saving Environment to Flash...
Un-Protected 1 sectors
Erasing Flash...
. done
Erased 1 sectors
Writing to Flash... done
Protected 1 sectors
The `\` is important for **setenv** not to misinterpret the `;` as the end of the command. Have fun with your mini NetBSD server!
