# NetBSD RAIDframe
## RAIDframe Introduction
### About RAIDframe
NetBSD uses the [CMU RAIDframe](http://www.pdl.cmu.edu/RAIDframe/) software fo
its RAID subsystem. NetBSD is the primary platform for RAIDframe development
RAIDframe can also be found in older versions of FreeBSD and OpenBSD. NetBS
also has another way of bundling disks, th
[ccd(4)](http://netbsd.gw.com/cgi-bin/man-cgi?ccd+4+NetBSD-5.0.1+i386) subsyste
(see [Concatenated Disk Device](/guide/ccd)). You should possess some [basi
knowledge](http://www.acnc.com/04_00.html) about RAID concepts and terminolog
before continuing. You should also be at least familiar with the differen
levels of RAID - Adaptec provides an [excellen
reference](http://www.adaptec.com/en-US/_common/compatibility/_education/RAID_level_compar_wp.htm)
and the [raid(4)](http://netbsd.gw.com/cgi-bin/man-cgi?raid+4+NetBSD-5.0.1+i386
manpage contains a short overview too.
### A warning about Data Integrity, Backups, and High Availability
RAIDframe is a Software RAID implementation, as opposed to Hardware RAID. A
such, it does not need special disk controllers supported by NetBSD. Syste
administrators should give a great deal of consideration to whether softwar
RAID or hardware RAID is more appropriate for their "Mission Critical
applications. For some projects you might consider the use of many of th
hardware RAID devices [supported b
NetBSD](http://www.NetBSD.org/support/hardware/). It is truly at your discretio
what type of RAID you use, but it is recommend that you consider factors suc
as: manageability, commercial vendor support, load-balancing and failover, etc.
Depending on the RAID level used, RAIDframe does provide redundancy in the even
of a hardware failure. However, it is *not* a replacement for reliable backups
Software and user-error can still cause data loss. RAIDframe may be used as
mechanism for facilitating backups in systems without backup hardware, but thi
is not an ideal configuration. Finally, with regard to "high availability", RAI
is only a very small component to ensuring data availability.
Once more for good measure: *Back up your data!*
### Hardware versus Software RAID
If you run a server, it will most probably already have a Hardware RAI
controller. There are reasons for and against using a Software RAID, dependin
on the scenario.
In general, a Software RAID is well suited for low-IO system disks. If you run
Software RAID, you can exchange disks and disk controllers, or even move th
disks to a completely different machine. The computational overhead for the RAI
is negligible if there is only few disk IO operations.
If you need much IO, you should use a Hardware RAID. With a Software RAID, th
redundancy data has to be transferred via the bus your disk controller i
connected to. With a Hardware RAID, you transfer data only once - the redundanc
computation and transfer is done by the controller.
### Getting Help
If you encounter problems using RAIDframe, you have several options fo
obtaining help.
1. Read the RAIDframe man pages
[raid(4)](http://netbsd.gw.com/cgi-bin/man-cgi?raid+4+NetBSD-5.0.1+i386) an
[raidctl(8)](http://netbsd.gw.com/cgi-bin/man-cgi?raidctl+8+NetBSD-5.0.1+i386
thoroughly.
2. Search the mailing list archives. Unfortunately, there is no NetBSD lis
dedicated to RAIDframe support. Depending on the nature of the problem, posts
tend to end up in a variety of lists. At a very minimum, search
[netbsd-help](http://mail-index.NetBSD.org/netbsd-help/),
[netbsd-users@NetBSD.org](http://mail-index.NetBSD.org/netbsd-users/),
[current-users@NetBSD.org](http://mail-index.NetBSD.org/current-users/). Also
search the list for the NetBSD platform on which you are using RAIDframe:
port-*`${ARCH}`*@NetBSD.org.
### Caution
Because RAIDframe is constantly undergoing development, some information i
mailing list archives has the potential of being dated and inaccurate.
3. Search the [Problem Repor
database](http://www.NetBSD.org/support/send-pr.html).
4. If your problem persists: Post to the mailing list most appropriat
(judgment call). Collect as much verbosely detailed information as possibl
before posting: Include you
[dmesg(8)](http://netbsd.gw.com/cgi-bin/man-cgi?dmesg+8+NetBSD-5.0.1+i386
output from `/var/run/dmesg.boot`, your kerne
[config(5)](http://netbsd.gw.com/cgi-bin/man-cgi?config+5+NetBSD-5.0.1+i386)
your `/etc/raid[0-9].conf`, any relevant errors on `/dev/console`
`/var/log/messages`, or to `stdout/stderr` o
[raidctl(8)](http://netbsd.gw.com/cgi-bin/man-cgi?raidctl+8+NetBSD-5.0.1+i386)
The output of **raidctl -s** (if available) will be useful as well. Als
include details on the troubleshooting steps you've taken thus far, exactl
when the problem started, and any notes on recent changes that may hav
prompted the problem to develop. Remember to be patient when waiting for
response.
## Setup RAIDframe Support
The use of RAID will require software and hardware configuration changes.
### Kernel Support
The GENERIC kernel already has support for RAIDframe. If you have built a custo
kernel for your environment the kernel configuration must have the followin
options:
pseudo-device raid 8 # RAIDframe disk driver
options RAID_AUTOCONFIG # auto-configuration of RAID components
The RAID support must be detected by the NetBSD kernel, which can be checked b
looking at the output of th
[dmesg(8)](http://netbsd.gw.com/cgi-bin/man-cgi?dmesg+8+NetBSD-5.0.1+i386
command.
# dmesg|grep -i raid
Kernelized RAIDframe activated
Historically, the kernel must also contain static mappings between bus addresse
and device nodes in `/dev`. This used to ensure consistency of devices withi
RAID sets in the event of a device failure after reboot. Since NetBSD 1.6
however, using the auto-configuration features of RAIDframe has been recommende
over statically mapping devices. The auto-configuration features allow drives t
move around on the system, and RAIDframe will automatically determine whic
components belong to which RAID sets.
### Power Redundancy and Disk Caching
If your system has an Uninterruptible Power Supply (UPS), if your system ha
redundant power supplies, or your disk controller has a battery, you shoul
consider enabling the read and write caches on your drives. On systems wit
redundant power, this will improve drive performance. On systems withou
redundant power, the write cache could endanger the integrity of RAID data i
the event of a power loss.
The [dkctl(8)](http://netbsd.gw.com/cgi-bin/man-cgi?dkctl+8+NetBSD-5.0.1+i386
utility to can be used for this on all kinds of disks that support the operatio
(SCSI, EIDE, SATA, ...):
# dkctl wd0 getcache
/dev/rwd0d: read cache enabled
/dev/rwd0d: read cache enable is not changeable
/dev/rwd0d: write cache enable is changeable
/dev/rwd0d: cache parameters are not savable
# dkctl wd0 setcache rw
# dkctl wd0 getcache
/dev/rwd0d: read cache enabled
/dev/rwd0d: write-back cache enabled
/dev/rwd0d: read cache enable is not changeable
/dev/rwd0d: write cache enable is changeable
/dev/rwd0d: cache parameters are not savable
## Example: RAID-1 Root Disk
This example explains how to setup RAID-1 root disk. With RAID-1 components ar
mirrored and therefore the server can be fully functional in the event of
single component failure. The goal is to provide a level of redundancy that wil
allow the system to encounter a component failure on either component disk i
the RAID and:
* Continue normal operations until a maintenance window can be scheduled.
* Or, in the unlikely event that the component failure causes a system reboot
be able to quickly reconfigure the system to boot from the remaining
component (platform dependent).
**RAID-1 Disk Logical Layout**
Because RAID-1 provides both redundancy and performance improvements, its mos
practical application is on critical "system" partitions such as `/`, `/usr`
`/var`, `swap`, etc., where read operations are more frequent than writ
operations. For other file systems, such as `/home` or `/var/`, other RAI
levels might be considered (see the references above). If one were simpl
creating a generic RAID-1 volume for a non-root file system, the cookie-cutte
examples from the man page could be followed, but because the root volume mus
be bootable, certain special steps must be taken during initial setup.
*Note*: This example will outline a process that differs only slightly betwee
the i386 and sparc64 platforms. In an attempt to reduce excessive duplication o
content, where differences do exist and are cosmetic in nature, they will b
pointed out using a section such as this. If the process is drasticall
different, the process will branch into separate, platform dependent steps.
### Pseudo-Process Outline
Although a much more refined process could be developed using a custom copy o
NetBSD installed on custom-developed removable media, presently the NetBS
install media lacks RAIDframe tools and support, so the following pseudo process
has become the de facto standard for setting up RAID-1 Root.

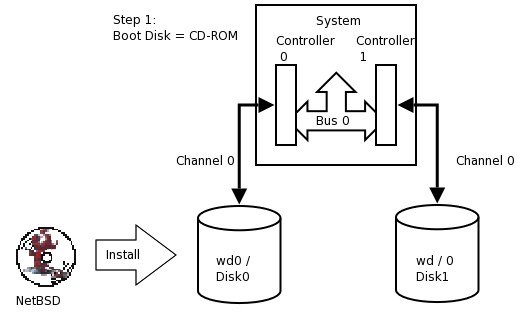

1. Install a stock NetBSD onto Disk0 of your system.
**Perform generic install onto Disk0/wd0**
2. Use the installed system on Disk0/wd0 to setup a RAID Set composed o
Disk1/wd1 only.
**Setup RAID Set**

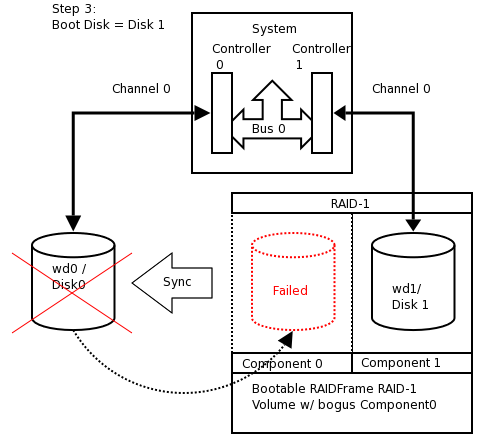

3. Reboot the system off the Disk1/wd1 with the newly created RAID volume.
**Reboot using Disk1/wd1 of RAID**
4. Add / re-sync Disk0/wd0 back into the RAID set.
**Mirror Disk1/wd1 back to Disk0/wd0**
### Hardware Review
At present, the alpha, amd64, i386, pmax, sparc, sparc64, and vax NetBS
platforms support booting from RAID-1. Booting is not supported from any othe
RAID level. Booting from a RAID set is accomplished by teaching the 1st stag
boot loader to understand both 4.2BSD/FFS and RAID partitions. The 1st boo
block code only needs to know enough about the disk partitions and file system
to be able to read the 2nd stage boot blocks. Therefore, at any time, th
system's BIOS / firmware must be able to read a drive with 1st stage boot block

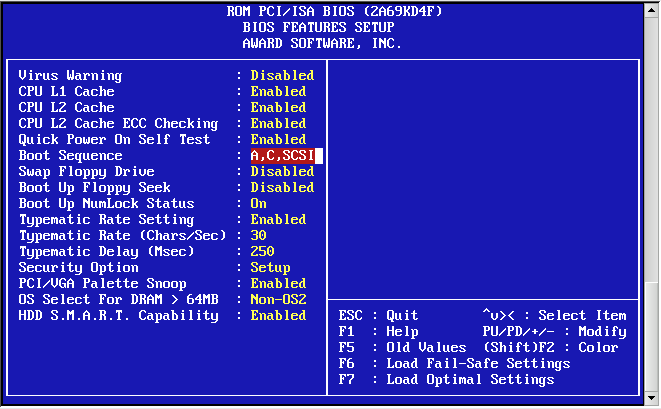

installed. On the i386 platform, configuring this is entirely dependent on th
vendor of the controller card / host bus adapter to which your disks ar
connected. On sparc64 this is controlled by the IEEE 1275 Sun OpenBoot Firmware.
This article assumes two identical IDE disks (`/dev/wd{0,1}`) which we are goin
to mirror (RAID-1). These disks are identified as:
# grep ^wd /var/run/dmesg.boot
wd0 at atabus0 drive 0: <WDC WD100BB-75CLB0>
wd0: drive supports 16-sector PIO transfers, LBA addressing
wd0: 9541 MB, 19386 cyl, 16 head, 63 sec, 512 bytes/sect x 19541088 sectors
wd0: drive supports PIO mode 4, DMA mode 2, Ultra-DMA mode 5 (Ultra/100)
wd0(piixide0:0:0): using PIO mode 4, Ultra-DMA mode 2 (Ultra/33) (using DMA data transfers)
wd1 at atabus1 drive 0: <WDC WD100BB-75CLB0>
wd1: drive supports 16-sector PIO transfers, LBA addressing
wd1: 9541 MB, 19386 cyl, 16 head, 63 sec, 512 bytes/sect x 19541088 sectors
wd1: drive supports PIO mode 4, DMA mode 2, Ultra-DMA mode 5 (Ultra/100)
wd1(piixide0:1:0): using PIO mode 4, Ultra-DMA mode 2 (Ultra/33) (using DMA data transfers)
*Note*: If you are using SCSI, replace `/dev/[r]wd{0,1}` with `/dev/[r]sd{0,1}`.
In this example, both disks are jumpered as Master on separate channels on th
same controller. You usually wouldn't want to have both disks on the same bus o
the same controller; this creates a single point of failure. Ideally you woul
have the disks on separate channels on separate controllers. Nonetheless, i
most cases the most critical point is the hard disk, so having redundan
channels or controllers is not that important. Plus, having more channels o
controllers increases costs. Some SCSI controllers have multiple channels on th
same controller, however, a SCSI bus reset on one channel could adversely affec
the other channel if the ASIC/IC becomes overloaded. The trade-off with tw
controllers is that twice the bandwidth is used on the system bus. For purpose
of simplification, this example shows two disks on different channels on th
same controller.
*Note*: RAIDframe requires that all components be of the same size. Actually, i
will use the lowest common denominator among components of dissimilar sizes. Fo
purposes of illustration, the example uses two disks of identical geometries
Also, consider the availability of replacement disks if a component suffers
critical hardware failure.
*Tip*: Two disks of identical vendor model numbers could have differen
geometries if the drive possesses "grown defects". Use a low-level program t
examine the grown defects table of the disk. These disks are obviousl
suboptimal candidates for use in RAID and should be avoided.
### Initial Install on Disk0/wd0
Perform a very generic installation onto your Disk0/wd0. Follow the `INSTALL
instructions for your platform. Install all the sets but do not bothe
customizing anything other than the kernel as it will be overwritten.
*Tip*: On i386, during the sysinst install, when prompted if you want to `us
the entire disk for NetBSD`, answer `yes`.
* [Installing NetBSD: Preliminary considerations and preparations](/guide/inst)
* [NetBSD/i386 Install Directions](http://ftp.NetBSD.org/pub/NetBSD/NetBSD-5.0.2/i386/INSTALL.html)
* [NetBSD/sparc64 Install Directions](http://ftp.NetBSD.org/pub/NetBSD/NetBSD-5.0.2/sparc64/INSTALL.html)
Once the installation is complete, you should examine th
[disklabel(8)](http://netbsd.gw.com/cgi-bin/man-cgi?disklabel+8+NetBSD-5.0.1+i386
and [fdisk(8)](http://netbsd.gw.com/cgi-bin/man-cgi?fdisk+8+NetBSD-5.0.1+i386)
[sunlabel(8)](http://netbsd.gw.com/cgi-bin/man-cgi?sunlabel+8+NetBSD-5.0.1+i386
outputs on the system:
# df
Filesystem 1K-blocks Used Avail %Cap Mounted on
/dev/wd0a 9487886 502132 8511360 5% /
On i386:
# disklabel -r wd0
type: unknown
disk: Disk00
label:
flags:
bytes/sector: 512
sectors/track: 63
tracks/cylinder: 16
sectors/cylinder: 1008
cylinders: 19386
total sectors: 19541088
rpm: 3600
interleave: 1
trackskew: 0
cylinderskew: 0
headswitch: 0 # microseconds
track-to-track seek: 0 # microseconds
drivedata: 0
16 partitions:
# size offset fstype [fsize bsize cpg/sgs]
a: 19276992 63 4.2BSD 1024 8192 46568 # (Cyl. 0* - 19124*)
b: 264033 19277055 swap # (Cyl. 19124* - 19385)
c: 19541025 63 unused 0 0 # (Cyl. 0* - 19385)
d: 19541088 0 unused 0 0 # (Cyl. 0 - 19385)
# fdisk /dev/rwd0d
Disk: /dev/rwd0d
NetBSD disklabel disk geometry:
cylinders: 19386, heads: 16, sectors/track: 63 (1008 sectors/cylinder)
total sectors: 19541088
BIOS disk geometry:
cylinders: 1023, heads: 255, sectors/track: 63 (16065 sectors/cylinder)
total sectors: 19541088
Partition table:
0: NetBSD (sysid 169)
start 63, size 19541025 (9542 MB, Cyls 0-1216/96/1), Active
1: <UNUSED>
2: <UNUSED>
3: <UNUSED>
Bootselector disabled.
First active partition: 0
On Sparc64 the command and output differ slightly:
# disklabel -r wd0
type: unknown
disk: Disk0
[...snip...]
8 partitions:
# size offset fstype [fsize bsize cpg/sgs]
a: 19278000 0 4.2BSD 1024 8192 46568 # (Cyl. 0 - 19124)
b: 263088 19278000 swap # (Cyl. 19125 - 19385)
c: 19541088 0 unused 0 0 # (Cyl. 0 - 19385)
# sunlabel /dev/rwd0c
sunlabel> P
a: start cyl = 0, size = 19278000 (19125/0/0 - 9413.09Mb)
b: start cyl = 19125, size = 263088 (261/0/0 - 128.461Mb)
c: start cyl = 0, size = 19541088 (19386/0/0 - 9541.55Mb)
### Preparing Disk1/wd1
Once you have a stock install of NetBSD on Disk0/wd0, you are ready to begin
Disk1/wd1 will be visible and unused by the system. To setup Disk1/wd1, you wil
us
[disklabel(8)](http://netbsd.gw.com/cgi-bin/man-cgi?disklabel+8+NetBSD-5.0.1+i386
to allocate the entire second disk to the RAID-1 set.
*Tip*: The best way to ensure that Disk1/wd1 is completely empty is to 'zero
out the first few sectors of the disk wit
[dd(1)](http://netbsd.gw.com/cgi-bin/man-cgi?dd+1+NetBSD-5.0.1+i386) . This wil
erase the MBR (i386) or Sun disk label (sparc64), as well as the NetBSD dis
label. If you make a mistake at any point during the RAID setup process, you ca
always refer to this process to restore the disk to an empty state.
*Note*: On sparc64, use `/dev/rwd1c` instead of `/dev/rwd1d`!
# dd if=/dev/zero of=/dev/rwd1d bs=8k count=1
1+0 records in
1+0 records out
8192 bytes transferred in 0.003 secs (2730666 bytes/sec)
Once this is complete, on i386, verify that both the MBR and NetBSD disk label
are gone. On sparc64, verify that the Sun Disk label is gone as well.
On i386:
# fdisk /dev/rwd1d
fdisk: primary partition table invalid, no magic in sector 0
Disk: /dev/rwd1d
NetBSD disklabel disk geometry:
cylinders: 19386, heads: 16, sectors/track: 63 (1008 sectors/cylinder)
total sectors: 19541088
BIOS disk geometry:
cylinders: 1023, heads: 255, sectors/track: 63 (16065 sectors/cylinder)
total sectors: 19541088
Partition table:
0: <UNUSED>
1: <UNUSED>
2: <UNUSED>
3: <UNUSED>
Bootselector disabled.
# disklabel -r wd1
[...snip...]
16 partitions:
# size offset fstype [fsize bsize cpg/sgs]
c: 19541025 63 unused 0 0 # (Cyl. 0* - 19385)
d: 19541088 0 unused 0 0 # (Cyl. 0 - 19385)
On sparc64:
# sunlabel /dev/rwd1c
sunlabel: bogus label on `/dev/wd1c' (bad magic number)
# disklabel -r wd1
[...snip...]
3 partitions:
# size offset fstype [fsize bsize cpg/sgs]
c: 19541088 0 unused 0 0 # (Cyl. 0 - 19385)
disklabel: boot block size 0
disklabel: super block size 0
Now that you are certain the second disk is empty, on i386 you must establis
the MBR on the second disk using the values obtained from Disk0/wd0 above. W
must remember to mark the NetBSD partition active or the system will not boot
You must also create a NetBSD disklabel on Disk1/wd1 that will enable a RAI
volume to exist upon it. On sparc64, you will need to simpl
[disklabel(8)](http://netbsd.gw.com/cgi-bin/man-cgi?disklabel+8+NetBSD-5.0.1+i386
the second disk which will write the proper Sun Disk Label.
*Tip*
[disklabel(8)](http://netbsd.gw.com/cgi-bin/man-cgi?disklabel+8+NetBSD-5.0.1+i386
will use your shell' s environment variable `$EDITOR` variable to edit th
disklabel. The default i
[vi(1)](http://netbsd.gw.com/cgi-bin/man-cgi?vi+1+NetBSD-5.0.1+i386)
On i386:
# fdisk -0ua /dev/rwd1d
fdisk: primary partition table invalid, no magic in sector 0
Disk: /dev/rwd1d
NetBSD disklabel disk geometry:
cylinders: 19386, heads: 16, sectors/track: 63 (1008 sectors/cylinder)
total sectors: 19541088
BIOS disk geometry:
cylinders: 1023, heads: 255, sectors/track: 63 (16065 sectors/cylinder)
total sectors: 19541088
Do you want to change our idea of what BIOS thinks? [n]
Partition 0:
<UNUSED>
The data for partition 0 is:
<UNUSED>
sysid: [0..255 default: 169]
start: [0..1216cyl default: 63, 0cyl, 0MB]
size: [0..1216cyl default: 19541025, 1216cyl, 9542MB]
bootmenu: []
Do you want to change the active partition? [n] y
Choosing 4 will make no partition active.
active partition: [0..4 default: 0] 0
Are you happy with this choice? [n] y
We haven't written the MBR back to disk yet. This is your last chance.
Partition table:
0: NetBSD (sysid 169)
start 63, size 19541025 (9542 MB, Cyls 0-1216/96/1), Active
1: <UNUSED>
2: <UNUSED>
3: <UNUSED>
Bootselector disabled.
Should we write new partition table? [n] y
# disklabel -r -e -I wd1
type: unknown
disk: Disk1
label:
flags:
bytes/sector: 512
sectors/track: 63
tracks/cylinder: 16
sectors/cylinder: 1008
cylinders: 19386
total sectors: 19541088
[...snip...]
16 partitions:
# size offset fstype [fsize bsize cpg/sgs]
a: 19541025 63 RAID # (Cyl. 0*-19385)
c: 19541025 63 unused 0 0 # (Cyl. 0*-19385)
d: 19541088 0 unused 0 0 # (Cyl. 0 -19385)
On sparc64:
# disklabel -r -e -I wd1
type: unknown
disk: Disk1
label:
flags:
bytes/sector: 512
sectors/track: 63
tracks/cylinder: 16
sectors/cylinder: 1008
cylinders: 19386
total sectors: 19541088
[...snip...]
3 partitions:
# size offset fstype [fsize bsize cpg/sgs]
a: 19541088 0 RAID # (Cyl. 0 - 19385)
c: 19541088 0 unused 0 0 # (Cyl. 0 - 19385)
# sunlabel /dev/rwd1
sunlabel> P
a: start cyl = 0, size = 19541088 (19386/0/0 - 9541.55Mb)
c: start cyl = 0, size = 19541088 (19386/0/0 - 9541.55Mb)
*Note*: On i386, the `c:` and `d:` slices are reserved. `c:` represents th
NetBSD portion of the disk. `d:` represents the entire disk. Because we want t
allocate the entire NetBSD MBR partition to RAID, and because `a:` reside
within the bounds of `c:`, the `a:` and `c:` slices have same size and offse
values and sizes. The offset must start at a track boundary (an increment o
sectors matching the sectors/track value in the disk label). On sparc64 however
`c:` represents the entire NetBSD partition in the Sun disk label and `d:` i
not reserved. Also note that sparc64's `c:` and `a:` require no offset from th
beginning of the disk, however if they should need to be, the offset must star
at a cylinder boundary (an increment of sectors matching the sectors/cylinde
value).
### Initializing the RAID Device
Next we create the configuration file for the RAID set / volume. Traditionally
RAIDframe configuration files belong in `/etc` and would be read and initialize
at boot time, however, because we are creating a bootable RAID volume, th
configuration data will actually be written into the RAID volume using th
*auto-configure* feature. Therefore, files are needed only during the initia
setup and should not reside in `/etc`.
# vi /var/tmp/raid0.conf
START array
1 2 0
START disks
absent
/dev/wd1a
START layout
128 1 1 1
START queue
fifo 100
Note that `absent` means a non-existing disk. This will allow us to establis
the RAID volume with a bogus component that we will substitute for Disk0/wd0 a
a later time.
Next we configure the RAID device and initialize the serial number to somethin
unique. In this example we use a "YYYYMMDD*`Revision`*" scheme. The format yo
choose is entirely at your discretion, however the scheme you choose shoul
ensure that no two RAID sets use the same serial number at the same time.
After that we initialize the RAID set for the first time, safely ignoring th
errors regarding the bogus component.
# raidctl -v -C /var/tmp/raid0.conf raid0
Ignoring missing component at column 0
raid0: Component absent being configured at col: 0
Column: 0 Num Columns: 0
Version: 0 Serial Number: 0 Mod Counter: 0
Clean: No Status: 0
Number of columns do not match for: absent
absent is not clean!
raid0: Component /dev/wd1a being configured at col: 1
Column: 0 Num Columns: 0
Version: 0 Serial Number: 0 Mod Counter: 0
Clean: No Status: 0
Column out of alignment for: /dev/wd1a
Number of columns do not match for: /dev/wd1a
/dev/wd1a is not clean!
raid0: There were fatal errors
raid0: Fatal errors being ignored.
raid0: RAID Level 1
raid0: Components: component0[**FAILED**] /dev/wd1a
raid0: Total Sectors: 19540864 (9541 MB)
# raidctl -v -I 2009122601 raid0
# raidctl -v -i raid0
Initiating re-write of parity
raid0: Error re-writing parity!
Parity Re-write status:
# tail -1 /var/log/messages
Dec 26 00:00:30 /netbsd: raid0: Error re-writing parity!
# raidctl -v -s raid0
Components:
component0: failed
/dev/wd1a: optimal
No spares.
component0 status is: failed. Skipping label.
Component label for /dev/wd1a:
Row: 0, Column: 1, Num Rows: 1, Num Columns: 2
Version: 2, Serial Number: 2009122601, Mod Counter: 7
Clean: No, Status: 0
sectPerSU: 128, SUsPerPU: 1, SUsPerRU: 1
Queue size: 100, blocksize: 512, numBlocks: 19540864
RAID Level: 1
Autoconfig: No
Root partition: No
Last configured as: raid0
Parity status: DIRTY
Reconstruction is 100% complete.
Parity Re-write is 100% complete.
Copyback is 100% complete.
### Setting up Filesystems
*Caution*: The root filesystem must begin at sector 0 of the RAID device. I
not, the primary boot loader will be unable to find the secondary boot loader.
The RAID device is now configured and available. The RAID device is a pseud
disk-device. It will be created with a default disk label. You must no
determine the proper sizes for disklabel slices for your production environment
For purposes of simplification in this example, our system will have 8.
gigabytes dedicated to `/` as `/dev/raid0a` and the rest allocated to `swap
as `/dev/raid0b`.
*Caution*: This is an unrealistic disk layout for a production server; th
NetBSD Guide can expand on proper partitioning technique. See [Installin
NetBSD: Preliminary considerations and preparations*](inst).
*Note*: Note that 1 GB is 2\*1024\*1024=2097152 blocks (1 block is 512 bytes, o
0.5 kilobytes). Despite what the underlying hardware composing a RAID set is
the RAID pseudo disk will always have 512 bytes/sector.
*Note*: In our example, the space allocated to the underlying `a:` slic
composing the RAID set differed between i386 and sparc64, therefore the tota
sectors of the RAID volumes differs:
On i386:
# disklabel -r -e -I raid0
type: RAID
disk: raid
label: fictitious
flags:
bytes/sector: 512
sectors/track: 128
tracks/cylinder: 8
sectors/cylinder: 1024
cylinders: 19082
total sectors: 19540864
rpm: 3600
interleave: 1
trackskew: 0
cylinderskew: 0
headswitch: 0 # microseconds
track-to-track seek: 0 # microseconds
drivedata: 0
# size offset fstype [fsize bsize cpg/sgs]
a: 19015680 0 4.2BSD 0 0 0 # (Cyl. 0 - 18569)
b: 525184 19015680 swap # (Cyl. 18570 - 19082*)
d: 19540864 0 unused 0 0 # (Cyl. 0 - 19082*)
On sparc64:
# disklabel -r -e -I raid0
[...snip...]
total sectors: 19539968
[...snip...]
3 partitions:
# size offset fstype [fsize bsize cpg/sgs]
a: 19251200 0 4.2BSD 0 0 0 # (Cyl. 0 - 18799)
b: 288768 19251200 swap # (Cyl. 18800 - 19081)
c: 19539968 0 unused 0 0 # (Cyl. 0 - 19081)
Next, format the newly created `/` partition as a 4.2BSD FFSv1 File System:
# newfs -O 1 /dev/rraid0a
/dev/rraid0a: 9285.0MB (19015680 sectors) block size 16384, fragment size 2048
using 51 cylinder groups of 182.06MB, 11652 blks, 23040 inodes.
super-block backups (for fsck -b #) at:
32, 372896, 745760, 1118624, 1491488, 1864352, 2237216, 2610080, 2982944,
...............................................................................
# fsck -fy /dev/rraid0a
** /dev/rraid0a
** File system is already clean
** Last Mounted on
** Phase 1 - Check Blocks and Sizes
** Phase 2 - Check Pathnames
** Phase 3 - Check Connectivity
** Phase 4 - Check Reference Counts
** Phase 5 - Check Cyl groups
1 files, 1 used, 4679654 free (14 frags, 584955 blocks, 0.0% fragmentation)
### Migrating System to RAID
The new RAID filesystems are now ready for use. We mount them under `/mnt` an
copy all files from the old system. This can be done usin
[dump(8)](http://netbsd.gw.com/cgi-bin/man-cgi?dump+8+NetBSD-5.0.1+i386) o
[pax(1)](http://netbsd.gw.com/cgi-bin/man-cgi?pax+1+NetBSD-5.0.1+i386).
# mount /dev/raid0a /mnt
# df -h /mnt
Filesystem Size Used Avail %Cap Mounted on
/dev/raid0a 8.9G 2.0K 8.5G 0% /mnt
# cd /; pax -v -X -rw -pe . /mnt
[...snip...]
The NetBSD install now exists on the RAID filesystem. We need to fix th
mount-points in the new copy of `/etc/fstab` or the system will not come u
correctly. Replace instances of `wd0` with `raid0`.
The swap should be unconfigured upon shutdown to avoid parity errors on the RAI
device. This can be done with a simple, one-line setting in `/etc/rc.conf`.
# vi /mnt/etc/rc.conf
swapoff=YES
Next, the boot loader must be installed on Disk1/wd1. Failure to install th
loader on Disk1/wd1 will render the system un-bootable if Disk0/wd0 fails. You
should hope your system won't have to reboot when wd0 fails.
*Tip*: Because the BIOS/CMOS menus in many i386 based systems are misleadin
with regard to device boot order. I highly recommend utilizing the `-
timeout=X` option supported by the i386 1st stage boot loader. Setup uniqu
values for each disk as a point of reference so that you can easily determin
from which disk the system is booting.
*Caution*: Although it may seem logical to install the 1st stage boot block int
`/dev/rwd1{c,d}` (which is historically correct with NetBSD 1.6.
[installboot(8)](http://netbsd.gw.com/cgi-bin/man-cgi?installboot+8+NetBSD-5.0.1+i386
, this is no longer the case. If you make this mistake, the boot sector wil
become irrecoverably damaged and you will need to start the process over again.
On i386, install the boot loader into `/dev/rwd1a`:
# /usr/sbin/installboot -o timeout=30 -v /dev/rwd1a /usr/mdec/bootxx_ffsv1
File system: /dev/rwd1a
Primary bootstrap: /usr/mdec/bootxx_ffsv1
Ignoring PBR with invalid magic in sector 0 of `/dev/rwd1a'
Boot options: timeout 30, flags 0, speed 9600, ioaddr 0, console pc
On sparc64, install the boot loader into `/dev/rwd1a` as well, however the `-o
flag is unsupported (and un-needed thanks to OpenBoot):
# /usr/sbin/installboot -v /dev/rwd1a /usr/mdec/bootblk
File system: /dev/rwd1a
Primary bootstrap: /usr/mdec/bootblk
Bootstrap start sector: 1
Bootstrap byte count: 5140
Writing bootstrap
Finally the RAID set must be made auto-configurable and the system should b
rebooted. After the reboot everything is mounted from the RAID devices.
# raidctl -v -A root raid0
raid0: Autoconfigure: Yes
raid0: Root: Yes
# tail -2 /var/log/messages
raid0: New autoconfig value is: 1
raid0: New rootpartition value is: 1
# raidctl -v -s raid0
[...snip...]
Autoconfig: Yes
Root partition: Yes
Last configured as: raid0
[...snip...]
# shutdown -r now
### Warning
Always us
[shutdown(8)](http://netbsd.gw.com/cgi-bin/man-cgi?shutdown+8+NetBSD-5.0.1+i386
when shutting down. Never simply us
[reboot(8)](http://netbsd.gw.com/cgi-bin/man-cgi?reboot+8+NetBSD-5.0.1+i386)
[reboot(8)](http://netbsd.gw.com/cgi-bin/man-cgi?reboot+8+NetBSD-5.0.1+i386
will not properly run shutdown RC scripts and will not safely disable swap. Thi
will cause dirty parity at every reboot.
### The first boot with RAID
At this point, temporarily configure your system to boot Disk1/wd1. See notes i
[[Testing Boot Blocks|guide/rf#adding-text-boot]] for details on this process
The system should boot now and all filesystems should be on the RAID devices
The RAID will be functional with a single component, however the set is no
fully functional because the bogus drive (wd9) has failed.
# egrep -i "raid|root" /var/run/dmesg.boot
raid0: RAID Level 1
raid0: Components: component0[**FAILED**] /dev/wd1a
raid0: Total Sectors: 19540864 (9541 MB)
boot device: raid0
root on raid0a dumps on raid0b
root file system type: ffs
# df -h
Filesystem Size Used Avail Capacity Mounted on
/dev/raid0a 8.9G 196M 8.3G 2% /
kernfs 1.0K 1.0K 0B 100% /kern
# swapctl -l
Device 1K-blocks Used Avail Capacity Priority
/dev/raid0b 262592 0 262592 0% 0
# raidctl -s raid0
Components:
component0: failed
/dev/wd1a: optimal
No spares.
component0 status is: failed. Skipping label.
Component label for /dev/wd1a:
Row: 0, Column: 1, Num Rows: 1, Num Columns: 2
Version: 2, Serial Number: 2009122601, Mod Counter: 65
Clean: No, Status: 0
sectPerSU: 128, SUsPerPU: 1, SUsPerRU: 1
Queue size: 100, blocksize: 512, numBlocks: 19540864
RAID Level: 1
Autoconfig: Yes
Root partition: Yes
Last configured as: raid0
Parity status: DIRTY
Reconstruction is 100% complete.
Parity Re-write is 100% complete.
Copyback is 100% complete.
### Adding Disk0/wd0 to RAID
We will now add Disk0/wd0 as a component of the RAID. This will destroy th
original file system structure. On i386, the MBR disklabel will be unaffecte
(remember we copied wd0's label to wd1 anyway) , therefore there is no need t
"zero" Disk0/wd0. However, we need to relabel Disk0/wd0 to have an identica
NetBSD disklabel layout as Disk1/wd1. Then we add Disk0/wd0 as "hot-spare" t
the RAID set and initiate the parity reconstruction for all RAID devices
effectively bringing Disk0/wd0 into the RAID-1 set and "syncing up" both disks.
# disklabel -r wd1 > /tmp/disklabel.wd1
# disklabel -R -r wd0 /tmp/disklabel.wd1
As a last-minute sanity check, you might want to us
[diff(1)](http://netbsd.gw.com/cgi-bin/man-cgi?diff+1+NetBSD-5.0.1+i386) t
ensure that the disklabels of Disk0/wd0 match Disk1/wd1. You should also backu
these files for reference in the event of an emergency.
# disklabel -r wd0 > /tmp/disklabel.wd0
# disklabel -r wd1 > /tmp/disklabel.wd1
# diff /tmp/disklabel.wd0 /tmp/disklabel.wd1
# fdisk /dev/rwd0 > /tmp/fdisk.wd0
# fdisk /dev/rwd1 > /tmp/fdisk.wd1
# diff /tmp/fdisk.wd0 /tmp/fdisk.wd1
# mkdir /root/RFbackup
# cp -p /tmp/{disklabel,fdisk}* /root/RFbackup
Once you are sure, add Disk0/wd0 as a spare component, and start reconstruction:
# raidctl -v -a /dev/wd0a raid0
/netbsd: Warning: truncating spare disk /dev/wd0a to 241254528 blocks
# raidctl -v -s raid0
Components:
component0: failed
/dev/wd1a: optimal
Spares:
/dev/wd0a: spare
[...snip...]
# raidctl -F component0 raid0
RECON: initiating reconstruction on col 0 -> spare at col 2
11% |**** | ETA: 04:26 \
Depending on the speed of your hardware, the reconstruction time will vary. Yo
may wish to watch it on another terminal (note that you can interrupt
`raidctl -S` any time without stopping the synchronisation):
# raidctl -S raid0
Reconstruction is 0% complete.
Parity Re-write is 100% complete.
Copyback is 100% complete.
Reconstruction status:
17% |****** | ETA: 03:08 -
After reconstruction, both disks should be *optimal*.
# tail -f /var/log/messages
raid0: Reconstruction of disk at col 0 completed
raid0: Recon time was 1290.625033 seconds, accumulated XOR time was 0 us (0.000000)
raid0: (start time 1093407069 sec 145393 usec, end time 1093408359 sec 770426 usec)
raid0: Total head-sep stall count was 0
raid0: 305318 recon event waits, 1 recon delays
raid0: 1093407069060000 max exec ticks
# raidctl -v -s raid0
Components:
component0: spared
/dev/wd1a: optimal
Spares:
/dev/wd0a: used_spare
[...snip...]
When the reconstruction is finished we need to install the boot loader on th
Disk0/wd0. On i386, install the boot loader into `/dev/rwd0a`:
# /usr/sbin/installboot -o timeout=15 -v /dev/rwd0a /usr/mdec/bootxx_ffsv1
File system: /dev/rwd0a
Primary bootstrap: /usr/mdec/bootxx_ffsv1
Boot options: timeout 15, flags 0, speed 9600, ioaddr 0, console pc
On sparc64:
# /usr/sbin/installboot -v /dev/rwd0a /usr/mdec/bootblk
File system: /dev/rwd0a
Primary bootstrap: /usr/mdec/bootblk
Bootstrap start sector: 1
Bootstrap byte count: 5140
Writing bootstrap
And finally, reboot the machine one last time before proceeding. This i
required to migrate Disk0/wd0 from status "used\_spare" as "Component0" to stat
"optimal". Refer to notes in the next section regarding verification of clea
parity after each reboot.
# shutdown -r now
### Testing Boot Blocks
At this point, you need to ensure that your system's hardware can properly boo
using the boot blocks on either disk. On i386, this is a hardware-dependen
process that may be done via your motherboard CMOS/BIOS menu or your controlle
card's configuration menu.
On i386, use the menu system on your machine to set the boot device order
priority to Disk1/wd1 before Disk0/wd0. The examples here depict a generic Awar
BIOS.
**Award BIOS i386 Boot Disk1/wd1**
Save changes and exit:
>> NetBSD/i386 BIOS Boot, Revision 5.2 (from NetBSD 5.0.2)
>> (builds@b7, Sun Feb 7 00:30:50 UTC 2010)
>> Memory: 639/130048 k
Press return to boot now, any other key for boot menu
booting hd0a:netbsd - starting in 30
You can determine that the BIOS is reading Disk1/wd1 because the timeout of th
boot loader is 30 seconds instead of 15. After the reboot, re-enter the BIOS an
configure the drive boot order back to the default:
**Award BIOS i386 Boot Disk0/wd0**
Save changes and exit:
>> NetBSD/i386 BIOS Boot, Revision 5.2 (from NetBSD 5.0.2)
>> Memory: 639/130048 k
Press return to boot now, any other key for boot menu
booting hd0a:netbsd - starting in 15
Notice how your custom kernel detects controller/bus/drive assignment
independent of what the BIOS assigns as the boot disk. This is the expecte
behavior.
On sparc64, use the Sun OpenBoot **devalias** to confirm that both disks are bootable:
Sun Ultra 5/10 UPA/PCI (UltraSPARC-IIi 400MHz), No Keyboard
OpenBoot 3.15, 128 MB memory installed, Serial #nnnnnnnn.
Ethernet address 8:0:20:a5:d1:3b, Host ID: nnnnnnnn.
ok devalias
[...snip...]
cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@2,0:f
disk /pci@1f,0/pci@1,1/ide@3/disk@0,0
disk3 /pci@1f,0/pci@1,1/ide@3/disk@3,0
disk2 /pci@1f,0/pci@1,1/ide@3/disk@2,0
disk1 /pci@1f,0/pci@1,1/ide@3/disk@1,0
disk0 /pci@1f,0/pci@1,1/ide@3/disk@0,0
[...snip...]
ok boot disk0 netbsd
Initializing Memory [...]
Boot device /pci/pci/ide@3/disk@0,0 File and args: netbsd
NetBSD IEEE 1275 Bootblock
>> NetBSD/sparc64 OpenFirmware Boot, Revision 1.13
>> (builds@b7.netbsd.org, Wed Jul 29 23:43:42 UTC 2009)
loadfile: reading header
elf64_exec: Booting [...]
symbols @ [....]
Copyright (c) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005,
2006, 2007, 2008, 2009
The NetBSD Foundation, Inc. All rights reserved.
Copyright (c) 1982, 1986, 1989, 1991, 1993
The Regents of the University of California. All rights reserved.
[...snip...]
And the second disk:
ok boot disk2 netbsd
Initializing Memory [...]
Boot device /pci/pci/ide@3/disk@2,0: File and args:netbsd
NetBSD IEEE 1275 Bootblock
>> NetBSD/sparc64 OpenFirmware Boot, Revision 1.13
>> (builds@b7.netbsd.org, Wed Jul 29 23:43:42 UTC 2009)
loadfile: reading header
elf64_exec: Booting [...]
symbols @ [....]
Copyright (c) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005,
2006, 2007, 2008, 2009
The NetBSD Foundation, Inc. All rights reserved.
Copyright (c) 1982, 1986, 1989, 1991, 1993
The Regents of the University of California. All rights reserved.
[...snip...]
At each boot, the following should appear in the NetBSD kerne
[dmesg(8)](http://netbsd.gw.com/cgi-bin/man-cgi?dmesg+8+NetBSD-5.0.1+i386) :
Kernelized RAIDframe activated
raid0: RAID Level 1
raid0: Components: /dev/wd0a /dev/wd1a
raid0: Total Sectors: 19540864 (9541 MB)
boot device: raid0
root on raid0a dumps on raid0b
root file system type: ffs
Once you are certain that both disks are bootable, verify the RAID parity i
clean after each reboot:
# raidctl -v -s raid0
Components:
/dev/wd0a: optimal
/dev/wd1a: optimal
No spares.
[...snip...]
Component label for /dev/wd0a:
Row: 0, Column: 0, Num Rows: 1, Num Columns: 2
Version: 2, Serial Number: 2009122601, Mod Counter: 67
Clean: No, Status: 0
sectPerSU: 128, SUsPerPU: 1, SUsPerRU: 1
Queue size: 100, blocksize: 512, numBlocks: 19540864
RAID Level: 1
Autoconfig: Yes
Root partition: Yes
Last configured as: raid0
Component label for /dev/wd1a:
Row: 0, Column: 1, Num Rows: 1, Num Columns: 2
Version: 2, Serial Number: 2009122601, Mod Counter: 67
Clean: No, Status: 0
sectPerSU: 128, SUsPerPU: 1, SUsPerRU: 1
Queue size: 100, blocksize: 512, numBlocks: 19540864
RAID Level: 1
Autoconfig: Yes
Root partition: Yes
Last configured as: raid0
Parity status: clean
Reconstruction is 100% complete.
Parity Re-write is 100% complete.
Copyback is 100% complete.
CVSweb for NetBSD wikisrc <wikimaster@NetBSD.org> software: FreeBSD-CVSweb
![[BACK]](/icons/back.gif){kind=icon}
Return to raidframe.mdwn CVS log ![[TXT]](/icons/text.gif){kind=icon}
![[DIR]](/icons/dir.gif){kind=icon}
Up to [NetBSD Developer Wiki] / wikisrc / guide
