5: # NetBSD Logical Volume Manager (LVM) configuration
6:
7: NetBSD LVM allows logical volume management on NetBSD systems, with a well known
8: user interface, which is the same as the Linux LVM2 tools.
9:
10: NetBSD LVM is built on Linux lvm2tools and libdevmapper, together with a
11: BSD-licensed device-mapper kernel driver specially written for NetBSD.
12:
13: The LVM driver allows the user to manage available disk space effectively and
14: efficiently. Disk space from several disks, and partitions, known as *Physical
15: Volumes*, can be added to *Volume Groups*, which is the pool of available disk
16: space for *Logical Partitions* aka Logical Volumes.
17:
18: Logical Volumes can be grown and shrunk at will using the LVM utilities.
19:
20: The basic building block is the Physical Volume. This is a disk, or a part of a
21: disk, which is used to store data.
22:
23: Physical Volumes are aggregated together to make Volume Groups, or VGs.
24: Typically, Volume Groups are used to aggregate storage for the same functional
25: unit. Typical Volume Groups could thus be named `Audio`, `Multimedia` or
26: `Documents`. By segregating storage requirements in this functional way, the
27: same type of resilience and redundancy is applied to the whole of the functional
28: unit.
29:
30: The steps required to setup a LVM are as follows:
31:
32: 1. Install physical media
33: 2. Configure kernel support
34: 3. Configure system, install tools
35: 4. *Optional step*
36: Disklabel each volume member of the LVM
37: 5. Initialize the LVM disk devices
38: 6. Create a volume group from initialized disks
39: 7. Create Logical volume from created Volume group
40: 8. Create a filesystem on the new LV device
41: 9. Mount the LV filesystem
42:
43:
44: This example features a LVM setup on NetBSD/i386.
45:

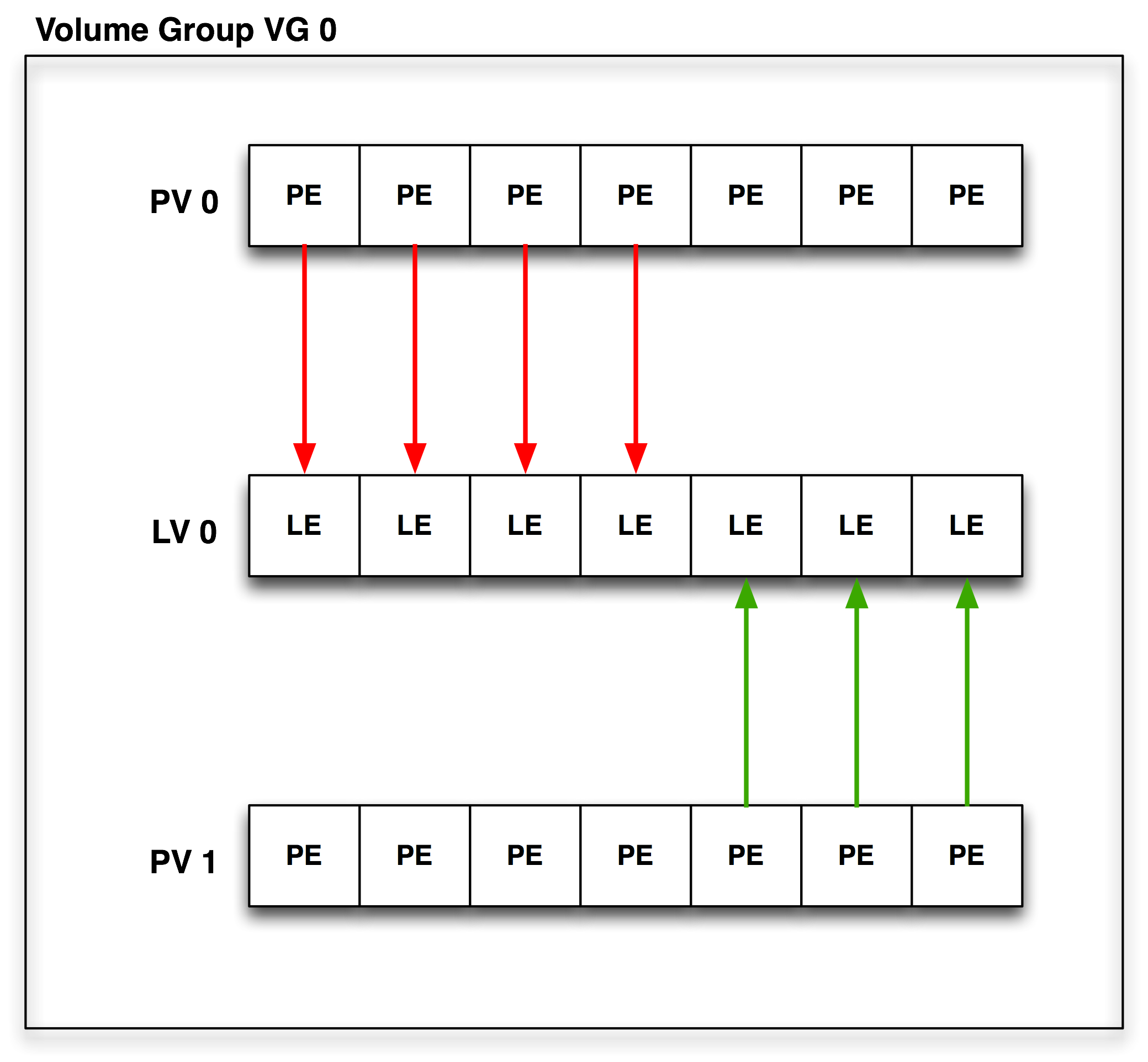

46: ## Anatomy of NetBSD Logical Volume Manager
47:
48:
49:
50: 1. **Volume Group**
51: The Volume Group is a disk space pool from which the user creates Logical
52: Volumes and to which Physical Volumes can be added. It is the basic
53: administration unit of the NetBSD LVM implementation.
54:
55: 2. **Physical Volume**
56: A physical volume is the basic unit in a LVM structure. Every PV consists of
57: small disk space chunks called Physical Extends. Every Volume Group must
58: have at least one PV. A PV can be created on hard disks or hard disk like
59: devices such as raid, ccd, or cgd device.
60:
61: 3. **Logical Volume**
62: The Logical Volume is a logical partition created from disk space assigned
63: to the Volume Group. LV can be newfsed and mounted as any other pseudo-disk
64: device. Lvm tools use functionality exported by the device-mapper driver in
65: the kernel to create the LV.
66:
67: 4. **Physical Extents**
68: Each physical volume is divided chunks of disk space. The default size is
69: 4MB. Every LV size is rounded by PE size. The LV is created by mapping
70: Logical Extends in the LV to Physical extends in a Volume group.
71:
72: 5. **Logical Extents**
73: Each logical volume is split into chunks of disk space, known as logical
74: extents. The extent size is the same for all logical volumes in the volume
75: group.
76:
77: 6. **Physical Extents mapping**
78: Every LV consists of *LEs* mapped to *PEs* mapped by a target mapping.
79: Currently, the following mappings are defined.
80:
81: * **Linear Mapping**
82: will linearly assign range of PEs to LEs.
83: For example it can map 100 PEs from PV 1 to LV 1 and another 100 PEs from
84: PV 0.
85:
86: * **Stripe Mapping**
87: will interleave the chunks of the logical extents across a number of
88: physical volumes.
89:
90: 7. **Snapshots**
91:
92: A facility provided by LVM is 'snapshots'. Whilst in standard NetBSD, the
93: [[!template id=man name="fss" section="3"]] driver
94: can be used to provide file system snapshots at a file system level, the
95: snapshot facility in the LVM allows the administrator to create a logical
96: block device which presents an exact copy of a logical volume, frozen at
97: some point in time. This facility does require that the snapshot be made at
98: a time when the data on the logical volume is in a consistent state.
99:
100: *Warning*: Snapshot feature is not fully implemented in LVM in NetBSD and
101: should not be used in production.
102:
103:
104: ## Install physical media
105:
106: This step is at your own discretion, depending on your platform and the hardware
107: at your disposal. LVM can be used with disklabel partitions or even with
108: standard partitions created with fdisk.
109:
110: From my `dmesg`:
111:
112: Disk #1:
113: probe(esp0:0:0): max sync rate 10.00MB/s
114: sd0 at scsibus0 target 0 lun 0: <SEAGATE, ST32430N SUN2.1G, 0444> SCSI2 0/direct fixed
115: sd0: 2049 MB, 3992 cyl, 9 head, 116 sec, 512 bytes/sect x 4197405 sectors
116:
117: Disk #2
118: probe(esp0:1:0): max sync rate 10.00MB/s
119: sd1 at scsibus0 target 1 lun 0: <SEAGATE, ST32430N SUN2.1G, 0444> SCSI2 0/direct fixed
120: sd1: 2049 MB, 3992 cyl, 9 head, 116 sec, 512 bytes/sect x 4197405 sectors
121:
122: Disk #3
123: probe(esp0:2:0): max sync rate 10.00MB/s
124: sd2 at scsibus0 target 2 lun 0: <SEAGATE, ST11200N SUN1.05, 9500> SCSI2 0/direct fixed
125: sd2: 1005 MB, 1872 cyl, 15 head, 73 sec, 512 bytes/sect x 2059140 sectors
126:
127: Disk #4
128: probe(esp0:3:0): max sync rate 10.00MB/s
129: sd3 at scsibus0 target 3 lun 0: <SEAGATE, ST11200N SUN1.05, 8808 > SCSI2 0
130: sd3: 1005 MB, 1872 cyl, 15 head, 73 sec, 512 bytes/sect x 2059140 sectors
131:
132: ## Configure Kernel Support
133:
134: The following kernel configuration directive is needed to provide LVM device
135: support. It is provided as a kernel module, so that no extra modifications need
136: be made to a standard NetBSD kernel. The dm driver is provided as a kernel
137: module, it first appeared in the NetBSD 6.0 release.
138:
139: If your system doesn't use modules you can enable dm driver in NetBSD by adding
140: this line to kernel configuration file. This will add device-mapper driver to
141: kernel and link it as statically linked module.
142:
143: pseudo-device dm
144:
145: If you do not want to rebuild your kernel only because of LVM support you can
146: use dm kernel module. The devmapper kernel module can be loaded on your system.
147: To get the current status of modules in the kernel, the tool
148: [[!template id=man name="modstat" section="8"]]
149: is used:
150:
151: vm1# modstat
152: NAME CLASS SOURCE REFS SIZE REQUIRES
153: cd9660 vfs filesys 0 21442 -
154: coredump misc filesys 1 2814 -
155: exec_elf32 misc filesys 0 6713 coredump
156: exec_script misc filesys 0 1091 -
157: ffs vfs boot 0 163040 -
158: kernfs vfs filesys 0 10201 -
159: ptyfs vfs filesys 0 7852 -
160:
161: You can use
162: [[!template id=man name="modload" section="8"]] to
163: load the dm kernel module by issueing `modload dm`:
164:
165: vm1# modstat
166: NAME CLASS SOURCE REFS SIZE REQUIRES
167: cd9660 vfs filesys 0 21442 -
168: coredump misc filesys 1 2814 -
169: dm misc filesys 0 14448 -
170: exec_elf32 misc filesys 0 6713 coredump
171: exec_script misc filesys 0 1091 -
172: ffs vfs boot 0 163040 -
173: kernfs vfs filesys 0 10201 -
174: ptyfs vfs filesys 0 7852 -
175:
176: ## Configure LVM on a NetBSD system
177:
178: For using LVM you have to install lvm2tools and libdevmapper to NetBSD system.
179: These tools and libraries are not enabled as default.
180:
181: To enable the build of LVM tools, set `MKLVM=yes` in the `/etc/mk.conf` or
182: `MAKECONF` file.
183:
184: ## Disklabel each physical volume member of the LVM
185:
186: Each physical volume disk in LVM will need a special file system established. In
187: this example, I will need to disklabel:
188:
189: /dev/rsd0d
190: /dev/rsd1d
191: /dev/rsd2d
192: /dev/rsd3d
193:
194: It should be borne in mind that it is possible to use the NetBSD vnd driver to
195: make standard file system space appear in the system as a disk device.
196:
197: *Note*: Always remember to disklabel the character device, not the block device,
198: in `/dev/r{s,w}d*`
199:
200: *Note*: On all platforms except i386 where `d` partition is used for this, the
201: `c` slice is symbolic of the entire NetBSD partition and is reserved.
202:
203: You will probably want to remove any pre-existing disklabels on the physical
204: volume disks in the LVM. This can be accomplished in one of two ways with the
205: [[!template id=man name="dd" section="1"]] command:
206:
207: # dd if=/dev/zero of=/dev/rsd0d bs=8k count=1
208: # dd if=/dev/zero of=/dev/rsd1d bs=8k count=1
209: # dd if=/dev/zero of=/dev/rsd2d bs=8k count=1
210: # dd if=/dev/zero of=/dev/rsd3d bs=8k count=1
211:
212: If your port uses a MBR (Master Boot Record) to partition the disks so that the
213: NetBSD partitions are only part of the overall disk, and other OSs like Windows
214: or Linux use other parts, you can void the MBR and all partitions on disk by
215: using the command:
216:
217: # dd if=/dev/zero of=/dev/rsd0d bs=8k count=1
218: # dd if=/dev/zero of=/dev/rsd1d bs=8k count=1
219: # dd if=/dev/zero of=/dev/rsd2d bs=8k count=1
220: # dd if=/dev/zero of=/dev/rsd3d bs=8k count=1
221:
222: This will make all data on the entire disk inaccessible. Note that the entire
223: disk is slice `d` on i386 (and some other ports), and `c` elsewhere (e.g. on
224: sparc). See the `kern.rawpartition` sysctl - `3` means `d`, `2` means `c`.
225:
226: The default disklabel for the disk will look similar to this:
227:
228: # disklabel -r sd0
229: [...snip...]
230: bytes/sector: 512
231: sectors/track: 63
232: tracks/cylinder: 16
233: sectors/cylinder: 1008
234: cylinders: 207
235: total sectors: 208896
236: rpm: 3600
237: interleave: 1
238: trackskew: 0
239: cylinderskew: 0
240: headswitch: 0 # microseconds
241: track-to-track seek: 0 # microseconds
242: drivedata: 0
243:
244: 4 partitions:
245: # size offset fstype [fsize bsize cpg/sgs]
246: a: 208896 0 4.2BSD 0 0 0 # (Cyl. 0 - 207*)
247: d: 208896 0 unused 0 0 # (Cyl. 0 - 207*)
248:
249: You will need to create one *slice* on the NetBSD partition of the disk that
250: consumes the entire partition. The slice must begin at least two sectors after
251: end of disklabel part of disk. On i386 it is `sector` 63. Therefore, the `size`
252: value should be `total sectors` minus 2x `sectors`. Edit your disklabel
253: accordingly:
254:
255: # disklabel -e sd0
256:
257: *Note*: The offset of a slice of type `4.2BSD` must be a multiple of the
258: `sectors` value.
259:
260: *Note*: Be sure to `export EDITOR=[path to your favorite editor]` before
261: editing the disklabels.
262:
263: *Note*: The slice must be fstype `4.2BSD`.
264:
265: Because there will only be one slice on this partition, you can recycle the `d`
266: slice (normally reserved for symbolic uses). Change your disklabel to the
267: following:
268:
269: 3 partitions:
270: # size offset fstype [fsize bsize cpg]
271: d: 4197403 65 4.2BSD # (Cyl. 1 - 4020*)
272:
273: Optionally you can setup a slice other than `d` to use, simply adjust
274: accordingly below:
275:
276: 3 partitions:
277: # size offset fstype [fsize bsize cpg]
278: a: 4197403 65 4.2BSD # (Cyl. 1 - 4020*)
279: c: 4197405 0 unused 1024 8192 # (Cyl. 0 - 4020*)
280:
281: Be sure to write the label when you have completed. Disklabel will object to
282: your disklabel and prompt you to re-edit if it does not pass its sanity checks.
283:
284: ## Create Physical Volumes
285:
286: Once all disks are properly labeled, you will need to create physical volume on
287: them. Every partition/disk added to LVM must have physical volume header on
288: start of it. All informations, like Volume group where Physical volume belongs
289: are stored in this header.
290:
291: # lvm pvcreate /dev/rwd1[ad]
292:
293: Status of physical volume can be viewed with the
294: [[!template id=man name="pvdisplay" section="8"]]
295: command.
296:
297: # lvm pvdisplay
298:
299: ## Create Volume Group
300:
301: Once all disks are properly labeled with physical volume header, volume group
302: must be created from them. Volume Group is pool of PEs from which administrator
303: can create Logical Volumes *partitions*.
304:
305: # lvm vgcreate vg0 /dev/rwd1[ad]
306:
307: * `vg0` is name of Volume Group
308: * `/dev/rwd1[ad]` is Physical Volume
309:
310: The volume group can be later extended/reduced with
311: [[!template id=man name="vgextend" section="8"]]
312: and
313: [[!template id=man name="vgreduce" section="8"]]
314: commands. These commands add physical volumes to VG.
315:
316: # lvm vgextend vg0 /dev/rwd1[ad]
317: # lvm vgreduce vg0 /dev/rwd1[ad]
318:
319: The status of Volume group can be viewed with the
320: [[!template id=man name="vgdisplay" section="8"]]
321: command.
322:
323: # lvm vgdisplay vg0
324:
325: ## Create Logical Volume
326:
327: Once the volume group was created, the administrator can create `logical
328: partitions` volumes.
329:
330: # lvm lvcreate -L 20M -n lv1 vg0
331:
332: * `vg0` is the name of the volume group
333: * `-L 20M` is the size of the logical volume
334: * `-n lv1` is the name of the logical volume
335:
336:
337: Logical Volume can be later extended/reduced with the
338: [[!template id=man name="lvextend" section="8"]]
339: and
340: [[!template id=man name="lvreduce" section="8"]]
341: commands.
342:
343: # lvm lvextend -L+20M /dev/vg0/lv1
344: # lvm lvreduce -L-20M /dev/vg0/lv1
345:
346: *Note*: To shrink a lv partition you have to shrink filesystem before. See the
347: manpage of
348: [[!template id=man name="resize_ffs" section="8"]]
349: for how to do this.
350:
351: The status of Logical Volume can be viewed with the
352: [[!template id=man name="lvdisplay" section="8"]]
353: command
354:
355: # lvm lvdisplay lv0/lv1
356:
357: After reboot, all functional LVs in the defined volume group can be activated
358: with the command:
359:
360: # lvm vgchange -a y
361:
362: ## Example: LVM with Volume groups located on raid1
363:
364: The motivation for using raid 1 disk as physical volume disk for Volume Group is
365: disk reliability. With the PV on raid 1 disk it is possible to use Logical
366: Volumes even after disk failure.
367:
368: ### Loading Device-Mapper driver
369:
370: Before we can start work with the LVM tools, we have to be sure that NetBSD dm
371: driver was properly compiled into the kernel or loaded as a module. The easiest
372: way to find out if we have dm driver available is to run `modstat`. For more
373: information, see [[Configure Kernel Support
374: chapter|guide/lvm#configuring-kernel]].
375:
376: ### Preparing raid1 installation
377:
378: Following the example raid configuration defined in [[Raid 1
379: configuration|guide/rf#configuring-raid]], the user will set up a clean raid1
380: disk device with 2 disks in a mirror mode.
381:
382: #### Example RAID1 configuration
383:
384: # vi /var/tmp/raid0.conf
385: START array
386: 1 2 0
387:
388: START disks
389: /dev/wd2a
390: /dev/wd1a
391:
392: START layout
393: 128 1 1 1
394:
395: START queue
396: fifo 100
397:
398: # raidctl -v -C /var/tmp/raid0.conf raid0
399: raid0: Component /dev/wd1a being configured at col: 0
400: Column: 0 Num Columns: 0
401: Version: 0 Serial Number: 0 Mod Counter: 0
402: Clean: No Status: 0
403: Column out of alignment for: /dev/wd2a
404: Number of columns do not match for: /dev/wd2a
405: /dev/wd2a is not clean!
406: raid0: Component /dev/wd1a being configured at col: 1
407: Column: 0 Num Columns: 0
408: Version: 0 Serial Number: 0 Mod Counter: 0
409: Clean: No Status: 0
410: Column out of alignment for: /dev/wd1a
411: Number of columns do not match for: /dev/wd1a
412: /dev/wd1a is not clean!
413: raid0: There were fatal errors
414: raid0: Fatal errors being ignored.
415: raid0: RAID Level 1
416: raid0: Components: /dev/wd2a /dev/wd1a
417: raid0: Total Sectors: 19540864 (9541 MB)
418: # raidctl -v -I 2004082401 raid0
419: # raidctl -v -i raid0
420: Initiating re-write of parity
421: # tail -1 /var/log/messages
422: raid0: Error re-writing parity!
423: # raidctl -v -s raid0
424: Components:
425: /dev/wd2a: optimal
426: /dev/wd1a: optimal
427: No spares.
428: Component label for /dev/wd1a:
429: Row: 0, Column: 1, Num Rows: 1, Num Columns: 2
430: Version: 2, Serial Number: 2004082401, Mod Counter: 7
431: Clean: No, Status: 0
432: sectPerSU: 128, SUsPerPU: 1, SUsPerRU: 1
433: Queue size: 100, blocksize: 512, numBlocks: 19540864
434: RAID Level: 1
435: Autoconfig: No
436: Root partition: No
437: Last configured as: raid0
438: Parity status: DIRTY
439: Reconstruction is 100% complete.
440: Parity Re-write is 100% complete.
441: Copyback is 100% complete.
442: Component label for /dev/wd2a:
443: Row: 0, Column: 1, Num Rows: 1, Num Columns: 2
444: Version: 2, Serial Number: 2004082401, Mod Counter: 7
445: Clean: No, Status: 0
446: sectPerSU: 128, SUsPerPU: 1, SUsPerRU: 1
447: Queue size: 100, blocksize: 512, numBlocks: 19540864
448: RAID Level: 1
449: Autoconfig: No
450: Root partition: No
451: Last configured as: raid0
452: Parity status: DIRTY
453: Reconstruction is 100% complete.
454: Parity Re-write is 100% complete.
455: Copyback is 100% complete.
456:
457:
458: After setting up the raid we need to create a disklabel on the raid disk.
459:
460: On i386:
461:
462: # disklabel -r -e -I raid0
463: type: RAID
464: disk: raid
465: label: fictitious
466: flags:
467: bytes/sector: 512
468: sectors/track: 128
469: tracks/cylinder: 8
470: sectors/cylinder: 1024
471: cylinders: 19082
472: total sectors: 19540864
473: rpm: 3600
474: interleave: 1
475: trackskew: 0
476: cylinderskew: 0
477: headswitch: 0 # microseconds
478: track-to-track seek: 0 # microseconds
479: drivedata: 0
480:
481: # size offset fstype [fsize bsize cpg/sgs]
482: a: 19540789 65 4.2BSD 0 0 0 # (Cyl. 0 - 18569)
483: d: 19540864 0 unused 0 0 # (Cyl. 0 - 19082*)
484:
485: On sparc64:
486:
487: # disklabel -r -e -I raid0
488: [...snip...]
489: total sectors: 19539968
490: [...snip...]
491: 2 partitions:
492: # size offset fstype [fsize bsize cpg/sgs]
493: a: 19540793 65 4.2BSD 0 0 0 # (Cyl. 0 - 18799)
494: c: 19539968 0 unused 0 0 # (Cyl. 0 - 19081)
495:
496: Partitions should be created with offset 65, because sectors < than 65 sector
497: are marked as readonly and therefore can't be rewriten.
498:
499: ### Creating PV, VG on raid disk
500:
501: Physical volumes can be created on any block device (i.e., disklike), and on any
502: partition on them. Thus, we can use the `a`, `d`, or on sparc64 `c` partitions.
503: The PV will label the selected partition as LVM-used and add the needed
504: metainformation for the LVM to it.
505:
506: The PV is created on the character disk device, as all other disk operations in
507: NetBSD:
508:
509: # lvm pvcreate /dev/rraid0a
510:
511: For our example purpose I will create the `vg00` Volume Group. The first
512: parameter of `vgcreate` is the name of the volume group, and the second is the
513: PV created on the raid. If you later found out that the volume group size is not
514: sufficient, and you need more space, you can extend it with `vgextend`:
515:
516: # lvm vgcreate vg00 /dev/rraid0a
517: # lvm vgextend vg00 /dev/rraid1a
518:
519: **Warning**: If you add a non-raid PV to your Volume Group, your data is not
520: safe anymore. Therefore you should add a raid based PV to VG if you want to keep
521: your data safe.
522:
523: ### Creating LVs from VG located on raid disk
524:
525: For our example purpose we will create Logical Volume named lv0. If you later
526: found that LV size is not sufficient for you can add it with `lvresize`.
527:
528: *Note*: You have to resize filesystem, when you have resized LV. Otherwise you
529: will not see any filesystem change when you mount LV.
530:
531: **Warning**: Shrinking of ffs file system is not supported in NetBSD be aware
532: that. If you want to play with file system shrinking you must shrink it before
533: you shrink LV.
534: This means that the `-L-*` option is not available in NetBSD.
535:
536: # lvm lvcreate -n lv0 -L 2G vg00
537: # lvm lvresize -L+2G vg00/lv0
538:
539: All lv device nodes are created in the `/dev/vg00/` directory. File system can
540: be create on LV with this command. After file system creation LV can be mounted
541: to system.
542:
543: # newfs -O2 /dev/vg00/rlv0
544: # mount /dev/vg00/lv0 /mnt/
545:
546: ### Integration of LV's in to the system
547:
548: For Proper LVM integration you have to enable lvm rc.d script, which detect LVs
549: during boot and enables them. You have to add entry for Logical Volume to the
550: `/etc/fstab` file.
551:
552: # cat /etc/rc.conf
553: [snip]
554: lvm=yes
555:
556: # cat /etc/fstab
557: /dev/wd0a / ffs rw 1 1
558: /dev/vg00/lv0 /lv0/ ffs rw 1 1
559: [snip]
560:
CVSweb for NetBSD wikisrc <wikimaster@NetBSD.org> software: FreeBSD-CVSweb
![[BACK]](/icons/back.gif){kind=icon}
Return to lvm.mdwn CVS log ![[TXT]](/icons/text.gif){kind=icon}
![[DIR]](/icons/dir.gif){kind=icon}
Up to [NetBSD Developer Wiki] / wikisrc / guide
